Portable mobile split-half pipe ring cutting and beveling machine external card equipment
product description:
1. This series of products is a portable external card split-type pipe cutting and beveling machine, which has the characteristics of light weight, small radial space, easy to carry and easy to use.
2. Four driving modes: electric YPD, pneumatic YPP, hydraulic YPH, and servo YPE.
3. Automatic feed design, no need to adjust manually, cutting high efficiency and high quality.
4. The machine body adopts special materials for forging and heat treatment to ensure the strength and hardness of the machine body at the same time.
5. High-precision CNC lathes, milling machines and other processing to ensure processing accuracy.

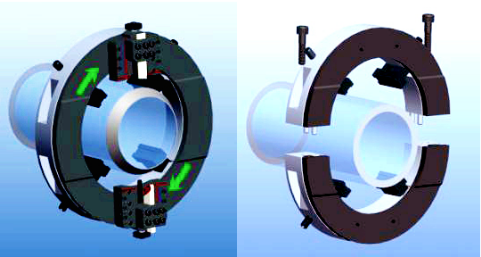

6. The body is a split ring structure, which can be divided into two parts and installed at any position in the pipeline.
7. Cutting grooves with different pipe diameters, different materials and different wall thicknesses can be processed according to customer requirements.
8. The cutting range can be processed from 20-3000mm.
9. Groove form: single "V", double "V", "U" type and "J" type compound grooves can be processed.
10. The cutting wall thickness can be cut regardless of the thickness and configuration of different drives, and the maximum cutting wall thickness can reach 200mm.
11. The groove is not deformed, has no burrs, is always kept clean, has no effect on the base material of the pipe, and is extremely suitable for occasions where high-quality welding is required.
Applicable industry:

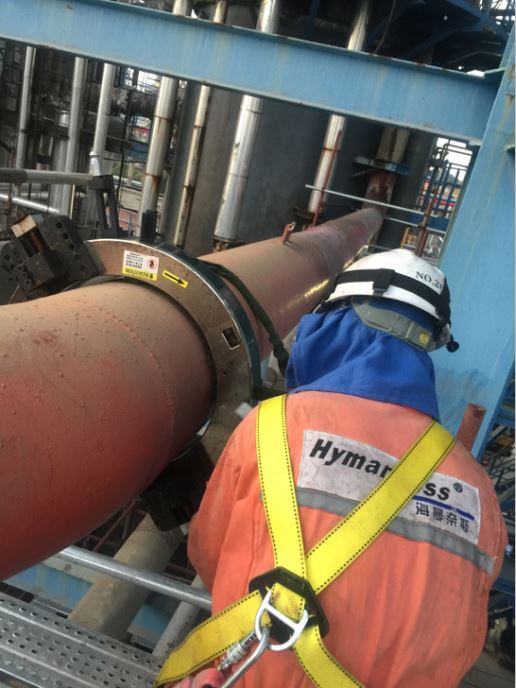

It is applied to pipeline installation projects and emergency repair operations in petroleum, chemical, natural gas, food, boilers, ships, pharmaceuticals, nuclear power, venue construction and other industries, such as the West-East Gas Pipeline Project and the Australian Gauguin Project.
Cutting pipe:
Plastic pipes, copper, brass, iron, ordinary steel, aluminum, high-quality steel, high-quality stainless steel and titanium and nickel-based alloys

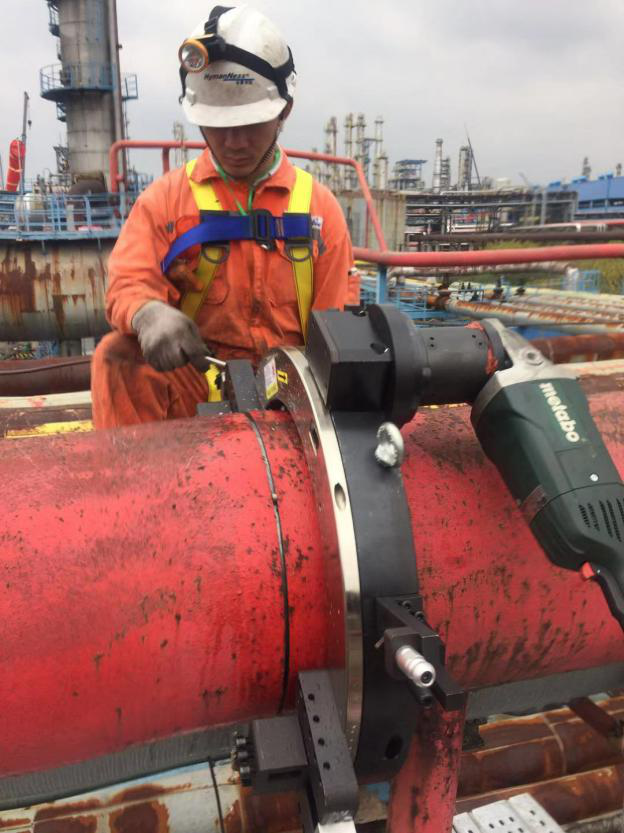

External card type electric pipe cutting and beveling machine
product description:
1. The motor adopts the metebao brand motor, which is small in size, light in weight, and affordable, suitable for site operations.
2. Power: 1.3-2.0KW
3. Voltage: 220V/50Hz
4. Speed: electronic stepless speed regulation
5. Motor installation direction is adjustable

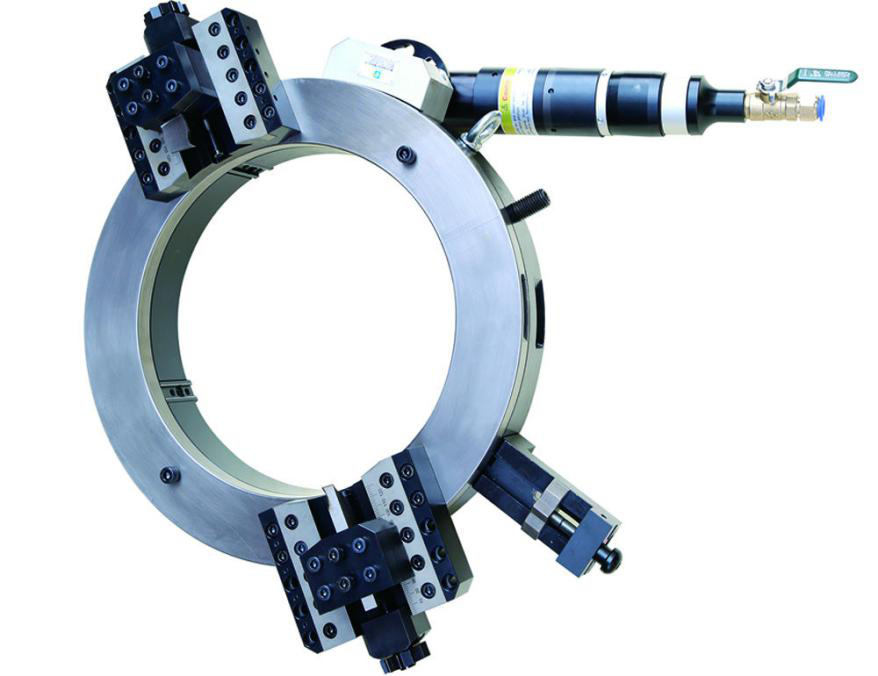

External clamp pneumatic pipe cutting and beveling machine
product description:
1. Driven by pneumatic motor, no power supply is needed during processing, no sparks or electrodes are generated, especially suitable for flammable, explosive, and dangerous operations.
2. Power: 0.9-2.5KW
3. Air working pressure: 0.5-0.7Mpa
4. Air consumption: 1500-3600L/min


External card hydraulic drive cutting and beveling machine
product description:
1. The hydraulic drive has strong power and stable operation. It can cut any material without the restriction of resistance. It is especially suitable for thick-walled pipes.
2. The hydraulic drive control method has panel control and wireless remote control, which can be controlled remotely within 50m.
3. The cutting speed is adjustable, the use range is wide, and the operation is simple. It can be used after starting up and selecting the appropriate speed. The best cutting effect can be achieved without other adjustments.
4. The system adopts high-precision load feedback proportional control to maximize energy saving and reduce heat generation, which is more suitable for severe working conditions.
5. The seal is made of high temperature resistant materials, and the maximum temperature of the system is 75 degrees and it can be used normally.
6. The hydraulic motor adopts American White imported motor, output power 3KW, large power, small size, light weight, stable operation, strong power, impact resistance, high temperature resistance.

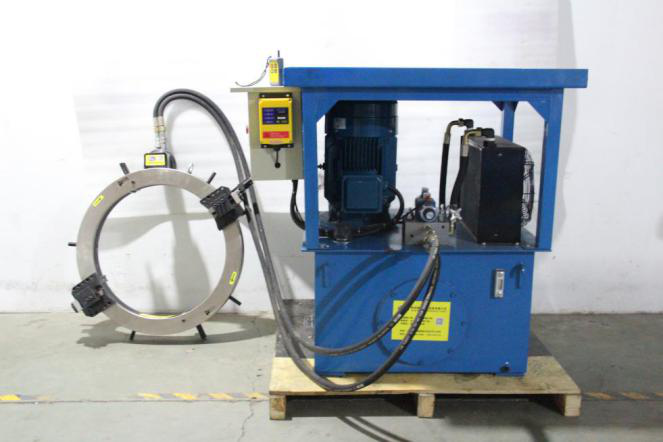

High-horsepower hydraulic station
1. Electric hydraulic pump station: variable pump station
2. Motor: 15KW motor, 380V power supply
3. Motor speed: 1450min, frequency: 50Hz
4. Mailbox capacity: super large flow 45L/min
5. Comes with 2 10m hydraulic tubing and 2 quick connectors
Small horsepower hydraulic station
1. Motor rate: 7.5KW
2. Rated pressure: 15Mpa
3. Pump displacement: 25L/min
4. The amount of mailbox: 180L
5. Control voltage: 24V
6. Cooling method: air cooling
7. Motor speed: 1450r/min
8. Voltage: 380V (3-phase 5-wire)
9. Comes with 2 10m hydraulic tubing and 2 quick connectors

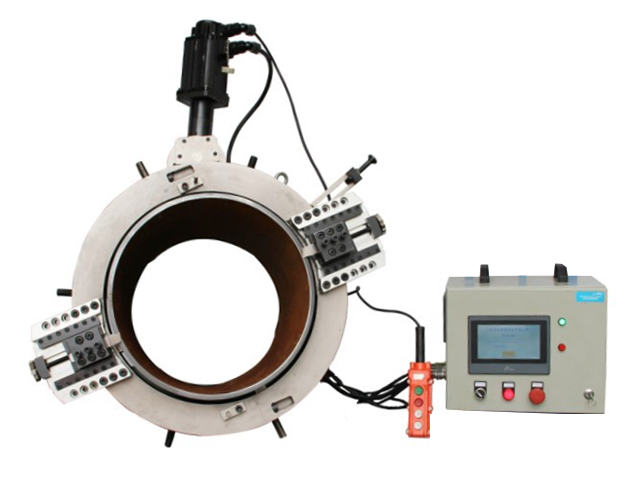

External card type servo pipe cutting and beveling machine
product description:
1. The servo motor drive starts quickly, and the best cutting effect can be achieved by choosing the right speed when starting up.
2. Strong power, suitable for high-speed and high-torque working conditions, stepless speed change can be realized through the potentiometer, to ensure the smooth operation of the system, no impact, and reduce tool wear.
3. The digital control system can be operated remotely to avoid dangerous operations.
4. The system adopts high-precision load feedback ratio to maximize energy saving, reduce motor heating, and is more suitable for harsh working conditions.
5. The safety factor is high, and the system has certain explosion-proof functions. The explosion-proof electrical products are in the form of explosion-proof type. They are used in class II long class IIB (class). The ignition temperature of explosive gas is T4 (T4: 135 ℃＜t≤200 level).
6. Small size, light weight, easy to carry.
Power supply: 220V
Rated power: 2-3KW
Rated frequency: 50-60Hz
Speed adjustment range: 0-20r/min
Motor output torque: 15N.M

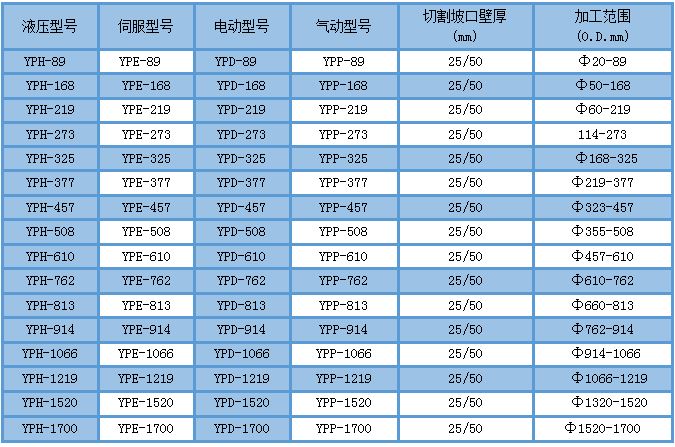

Performance selection parameter table:

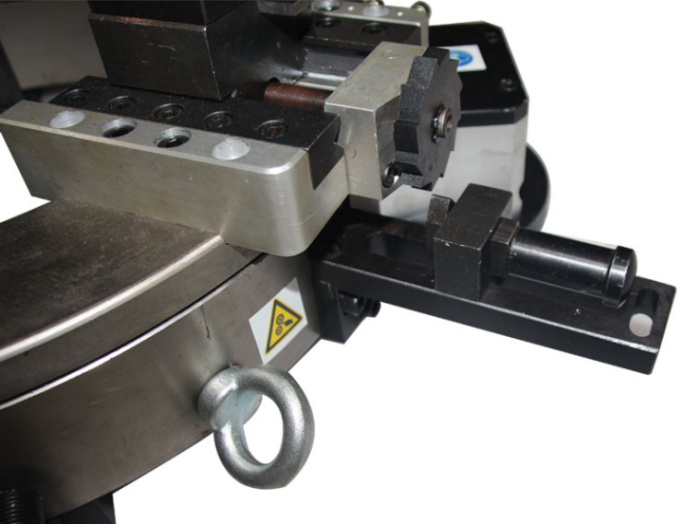

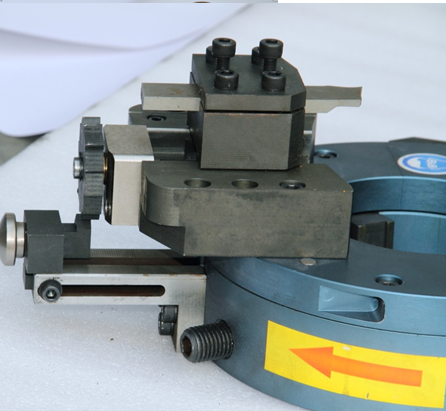

Automatic feed device:

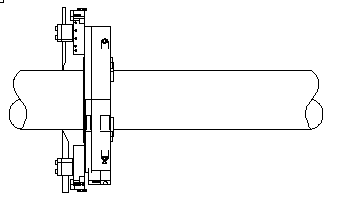

Installation method:


Tube head directly sleeved       Split installation in pipe


Pipes are placed and installed                        Pipe vertical installation
Note: The groove direction can also be reversed

Heavy-duty bridge, dedicated to thick-walled pipes

The bridge-type feed method is specially designed to meet the requirements of small bevel angles of thick-walled pipes that are not easy to cut. The lathe-type feed method is adopted to avoid excessive tool intake, thereby ensuring the cutting of thick-walled pipes.

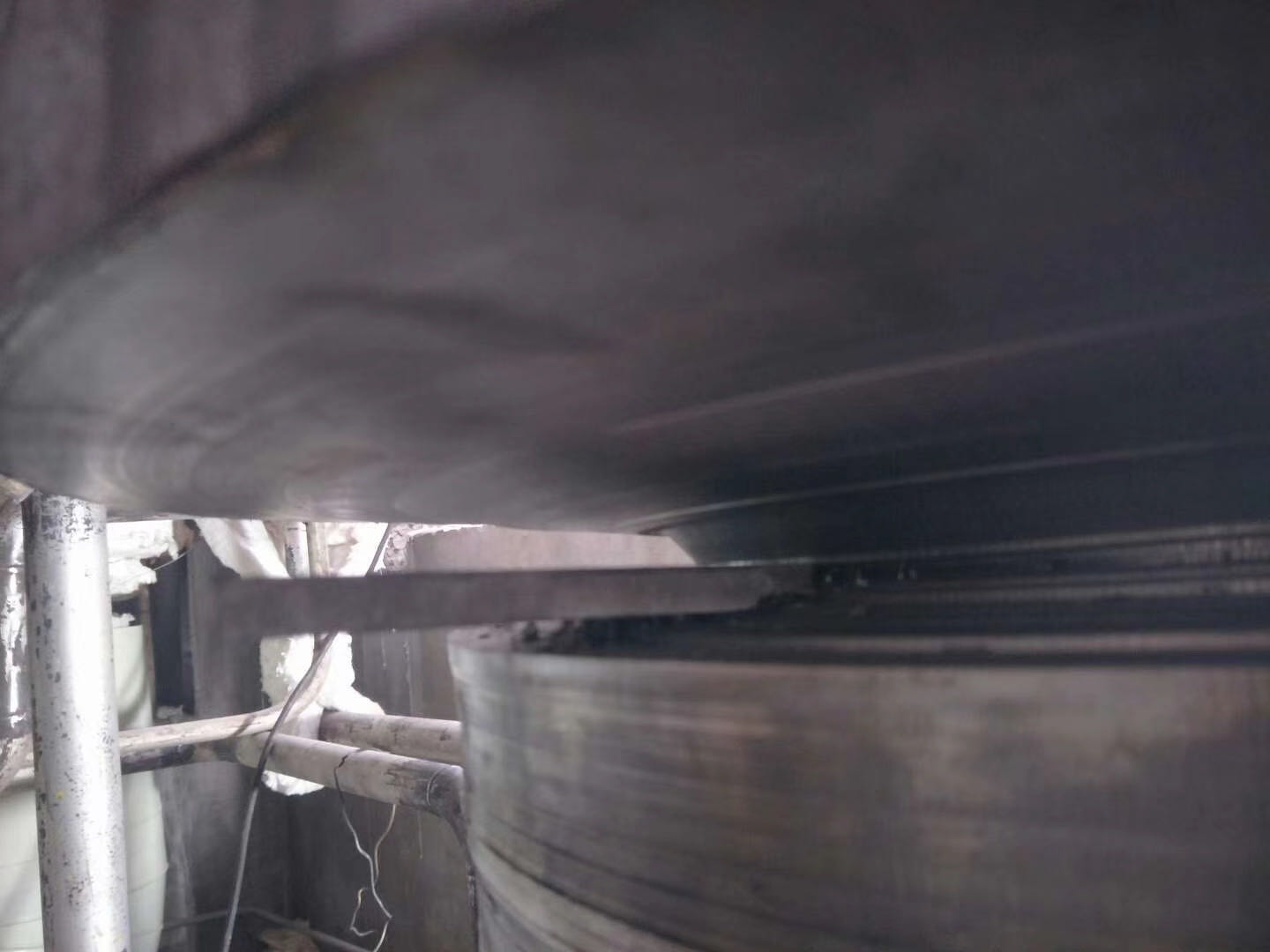

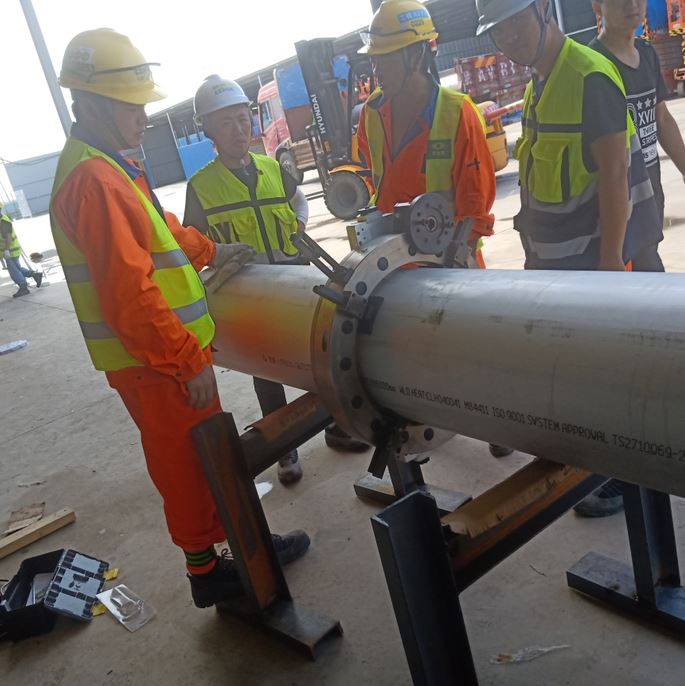

Product delivery to customer use site

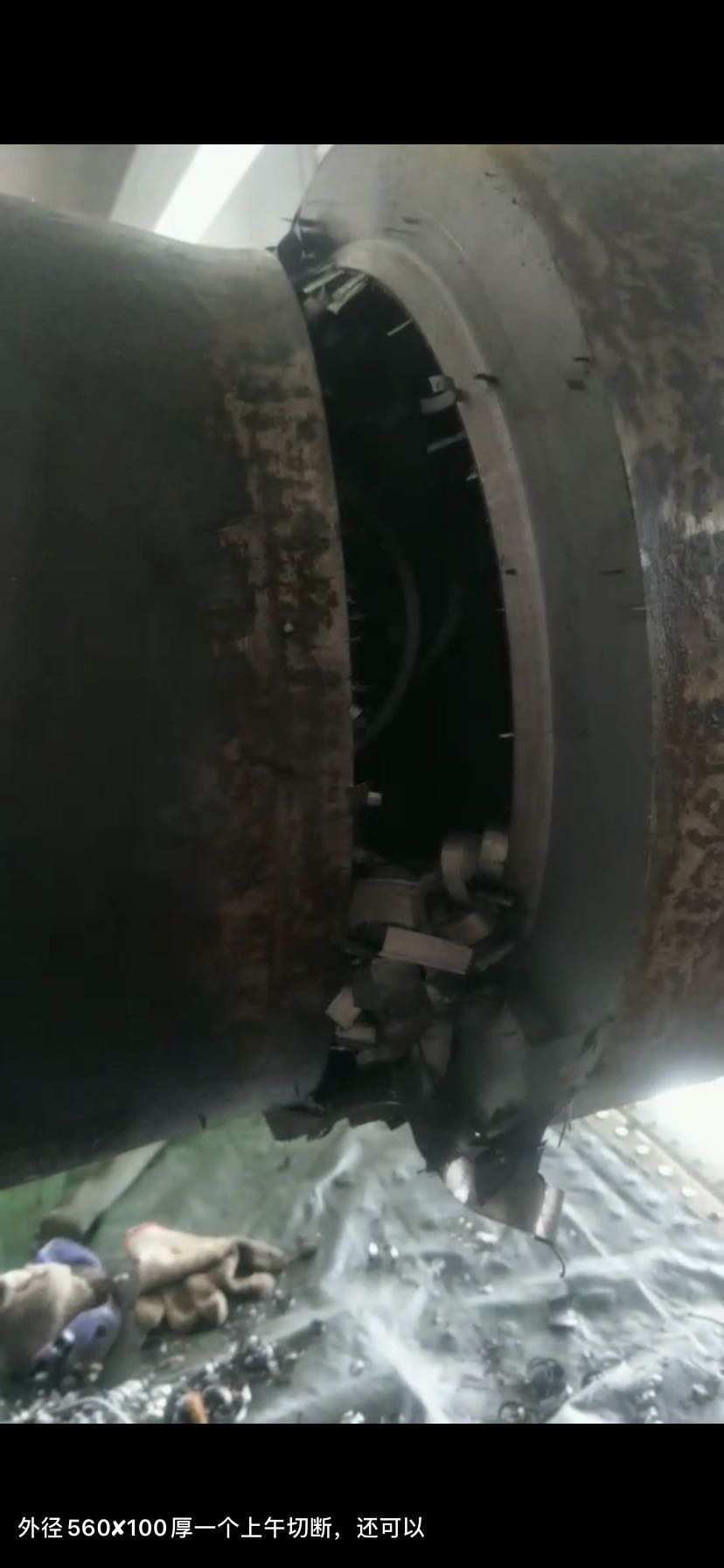

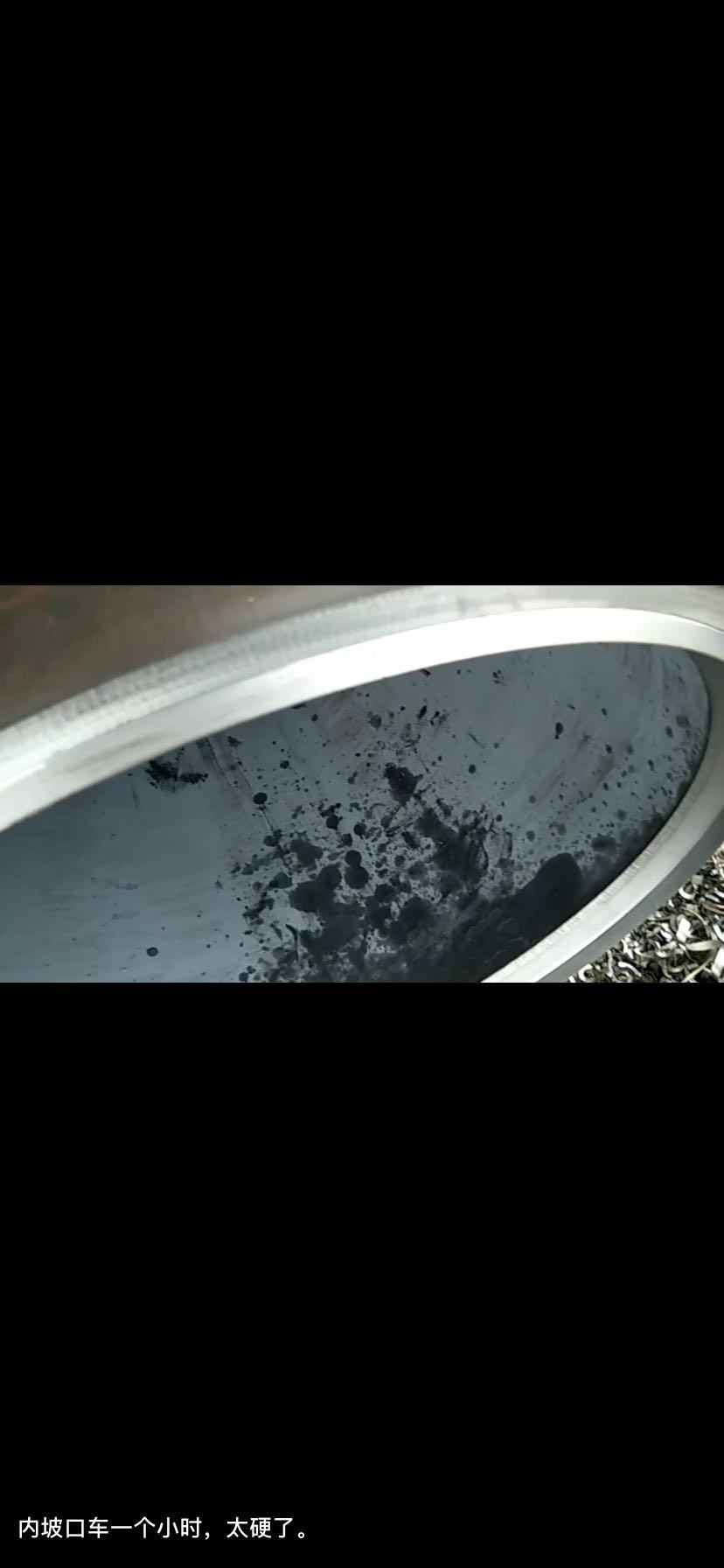

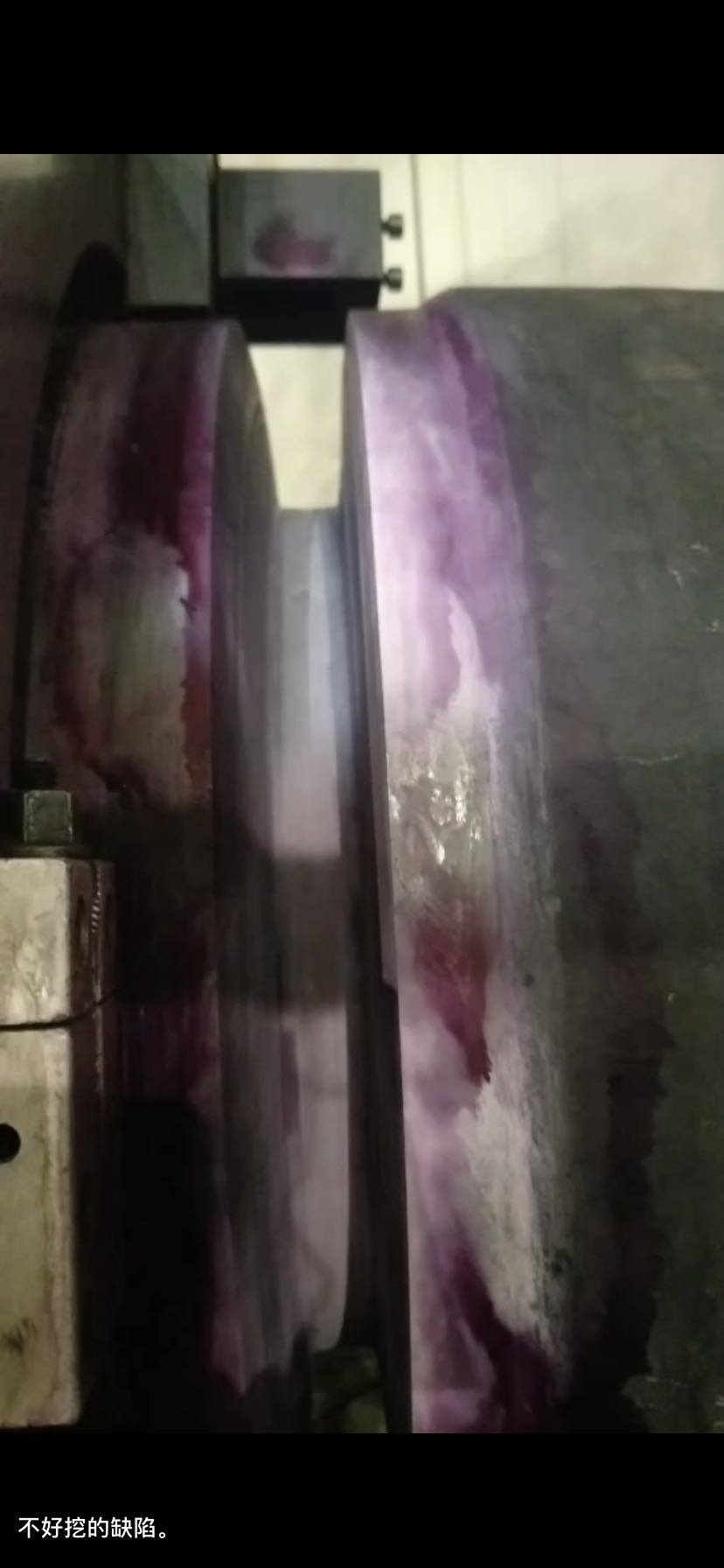

200mm cutting bevel for high pressure pipeline




For more sizes and non-standard requirements, please contact HymanNess engineers!
